1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
| Model | BSC-4FA2-GL(4′) | BSC-6FA2-GL(6′) | BSC-4FA2-NA(4′) | BSC-6FA2-NA(6′) | |
| External Size(W*D*H) | 1383*775*2295mm | 1873*775*2295mm | 1383*775*2295mm | 1873*775*2295mm | |
| Internal Size(W*D*H) | 1210*600*660mm | 1700*600*660mm | 1210*600*660mm | 1700*600*660mm | |
| Work Surface Height | 750mm | ||||
| Max Opening | 550mm (22’’) | ||||
| Tested Opening | Safety height 254mm (10’’) | ||||
| Airflow Volume | Inflow | 587m3/h(346cfm) | 824m3/h(485cfm) | 587m3/h(346cfm) | 824m3/h(485cfm) |
| Down flow | 60%:863m3/h(508cfm) | 60%:1212m3/h(713cfm) | 60%:863m3/h(508cfm) | 60%:1212m3/h(713cfm) | |
| Exhaust | 40%:587m3/h(346cfm) | 40%:824m3/h(485cfm) | 40%:587m3/h(346cfm) | 40%:824m3/h(485cfm) | |
| Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV | ||||
| HEPA Filter | Two, 99.999% efficiency at 0.3um, filter life indicator | ||||
| Filter Guard Type | Aluminum alloy frame | ||||
| Noise | NSF 49≤61 dB/EN 12469≤58 dB | ||||
| Illumination | ≥1000Lux | ||||
| Display | LCD Display | ||||
| Waterproof Socket | 2, Total consumption:≤500W | ||||
| Tap | Water tap*1, Gas tap *1 | ||||
| Ground Resistance | ≤ 0.10Ω | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | ||||
| Consumption | 400W | 500W | 400W | 500W | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height. | ||||
| DC Motor | One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption | ||||
| Material | Working area: 304stainless steel/ Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating | ||||
| UV Lamp | 30W | 40W | 30W | 40W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||||
| Illuminating Lamp | 18W*2 | 22W*2 | 18W*2 | 22W*2 | |
| LED lamp | |||||
| Standard Accessory | Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve, Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks | ||||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer,Infrared sterilizer, Electric height adjustable base stand, Remote control | ||||
| Package Size (W*D*H) | 1540*1080*1900mm | 2020*1080*1900mm | 1540*1080*1900mm | 2020*1080*1900mm | |
| Gross Weight | 340kg | 370kg | 340kg | 370kg | |

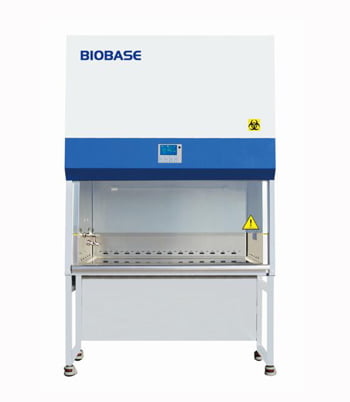

Safety fume hood for limiting exposure to microbiological contaminants in laboratory. Fume hood offers for environmental, sample and operator exposure. Safety hood come in choice of 3, 4 or 6 foot. Safety cabinet is designed with stainless steel exterior and UV light for sanitary environment.
Airflow system: 70% air recirculation, 30% air exhaust
A2 cabinet is recommended for microbiological applications and not chemical elements.
| Cabinet Size | 3 Foot, 4 Foot, 6 Foot |
|---|
